Adjustable Full Cut-off Wall Pack-GEN1 ZTGL-1100B/C/D

Characteristics

General Information

Compliance

UL LISTED

DLC

FCC

RoHS

Electrical Information

Electrical Class

Class I US

Nominal Voltage

120-277V 50-60Hz

347-480V 50-60Hz

Surge protection (kV)

10

Control protocol(s)

1-10V

Optical Information

LED Color temperature(K)

3000

4000

5000

CCT selectable(3000-4000-5000K)

Color redering index (CRI)

70

Performance

Luminaire output flux (lm)

3750-15000

Power consumption (W)

30-100

Luminaire efficacy - up to (lm/W)

150

Housing and finish

Housing

Die-cast aluminum

Protector

PC cover

Tightness level

Wet location

Key Features

Construction

  • Rugged die-cast aluminum housing and PC cover.
  • Housing has direct contact with the driver to help maintain low temperature and long lifespan.
  • Housing is completely sealed against moisture and environmental contaminants.
  • The exterior is protected by a rust-resistant powder coat finish that provides superior resistance to weathering and corrosion.
  • Textured architectural bronze/black/white powder coat finish.

Electrical

  • Outdoor full cut-off for DLC5.1.
  • Light engines are available in standard 3000/4000/ 5000K or CCT Selectable(3000K-4000K-5000K) and CRI70 configurations.
  • Universal 120-277V input voltage, optional 347-480V input voltage.
  • 1-10V dimmable driver.
  • THD: ≤20%, Power Factor: ≥90%.

Controls

  • Optional button photocell for additional energy savings 120-277V.
  • Optional 10KV SPD.
  • Optional EM Driver.
  • Optional motion sensor.

Installation

  • Only wall mount with J-box.
  • Easy installation with connecting plate and hinged door.

5-year limited warranty

  • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Listings

  • Design Lights Consortium® (DLC 5.1) qualified.
  • UL listed for wet locations.
  • Rated for ambient operating temperature -40°F to 108°F (-40°C to 40°C).

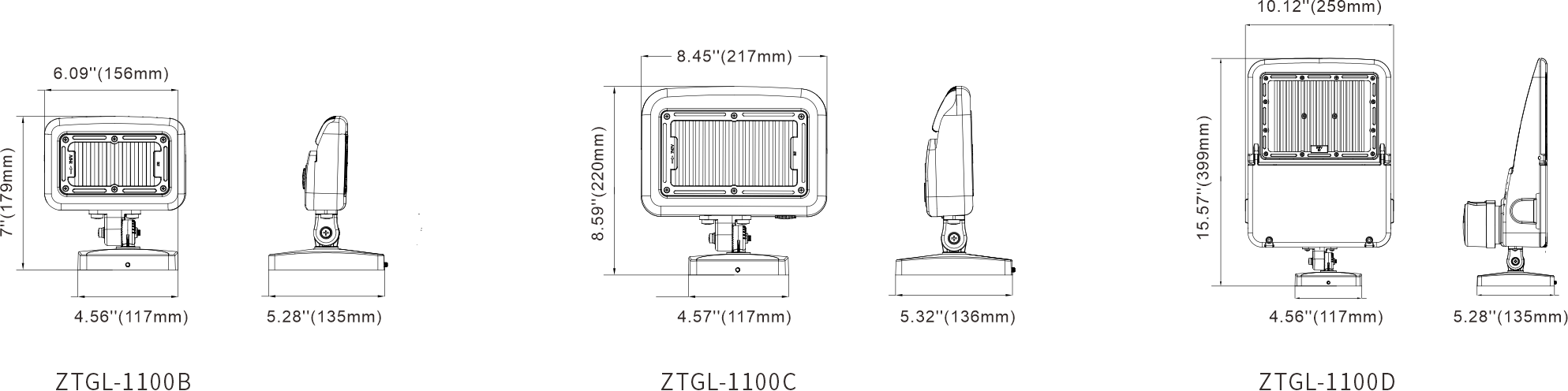

Dimension

This product is available in 3 sizes to meet different application scenarios.

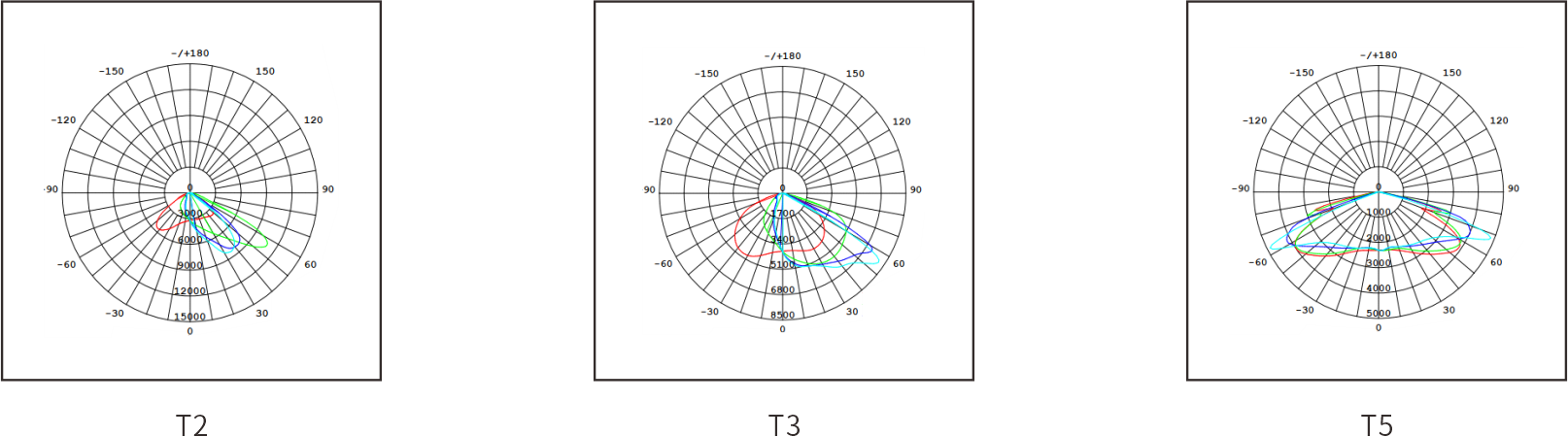

Photometricsion

Each point on the light distribution curve indicates the luminous intensity of the lamp in this direction, and the angle of the lamp can also be known.

Accessory

Photocell

Motion Sensor

Show More

Download

Data Sheet-US

ZTGL-1100BCD-US
Download

IES Package

ZTGL-1100BCD-US
Download

Explore Dalite Lighting Products

Our Most Frequently Asked Questions

The following is a discussion about the key issues of our products.

What about the lead time?

We offer 3-month delivery for project-based services and 45-day delivery for non-project services. We can also accommodate special deadline requests.

Do you have any MOQ limit for led street light orders?

Low MOQ, 1pc for sample checking, is available.

How do you ship the goods, and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days for delivery. Airline or sea shipping is also optional.

Is it OK to print my logo on the led street light product?

Yes. Please inform us formally before our production and confirm the design first besides our sample.

Do you offer a guarantee for the products?

Yes, we offer a 2-5 years warranty on our products.

How to deal with the faulty?

Firstly, Our products are produced in a strict quality control system, and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new orders for small quantities.
