Characteristics

General Information

Compliance

UL certified

DLC

RoHS

Electrical Information

Electrical Class

Class I US

Nominal Voltage

120-277V 50-60Hz

120-347V 50-60Hz

Surge protection (kV)

10 (Optional)

Control protocol(s)

0-10V

Control option(s)

Motion Sensor

10KV SPD

Optical Information

LED Color temperature(K)

3000

4000

5000

70

Performance

Luminaire output flux (lm)

7800-13500

Power consumption (W)

60-90

Luminaire efficacy - up to (lm/W)

130

Housing and finish

Housing

Die-cast aluminum

Optic

PC

Protector

Glass cover

Tightness level

IP65

Key Features

Construction

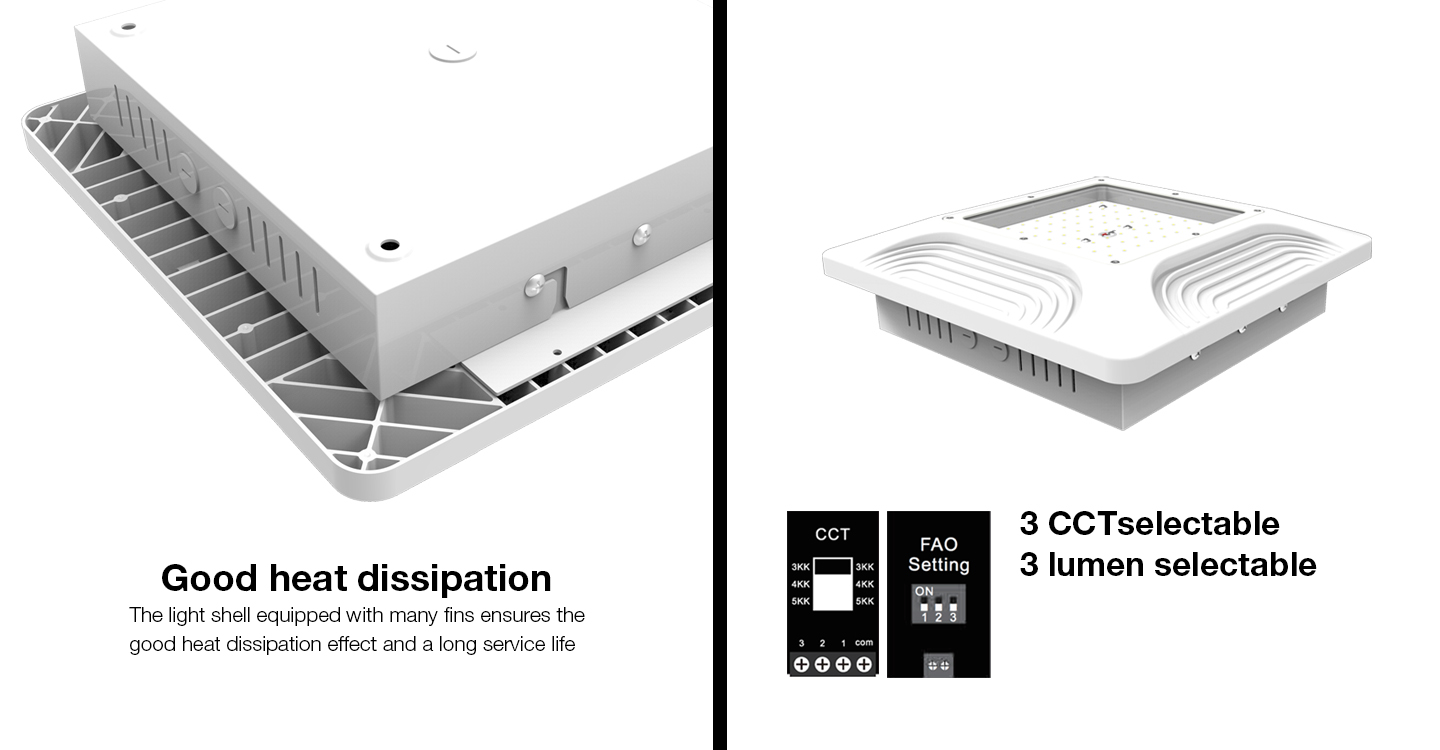

  • Rugged die-cast aluminum housing and glass cover.
  • Housing is completely sealed against moisture and environmental contaminants.
  • The exterior is protected by a rust-resistant powder coat finish that provides superior resistance to weathering and corrosion.
  • Textured architectural white powder coat finish.

Electrical

  • Type V light distribution available.
  • Light engines are available in standard CCTSelectable（3000K-4000K-5000K) configurations.
  • A range of lumen options available from 3,920 to 13,000 Lumens, replaces up to 250W metal halide.
  • Universal 120-277V input voltage, 120-347V on option.
  • 0-10V dimmable driver.
  • THD: ≤20%, Power Factor: ≥90%.

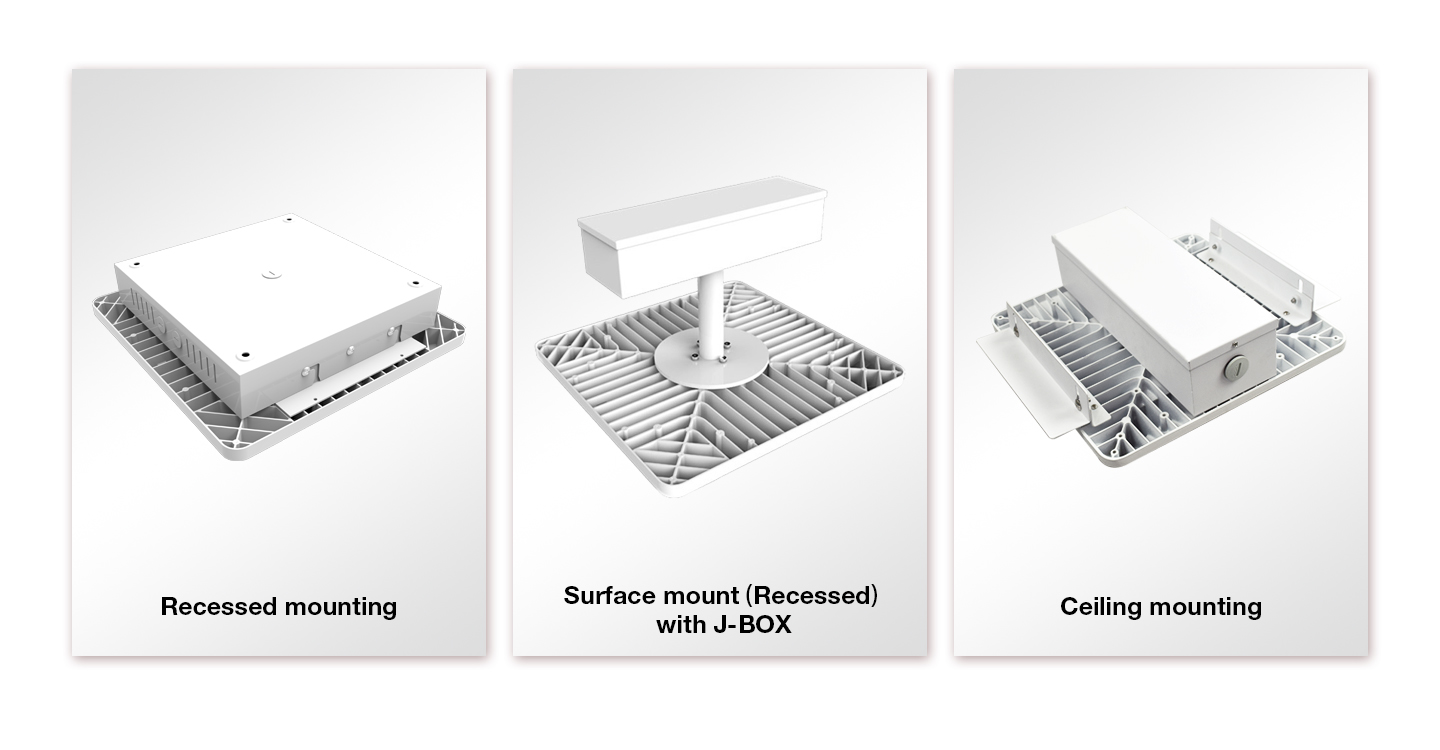

Installation

  • Recessed mounting
  • Ceiling mounting
  • Surface mount（Recessed） with J-BOX.

5-year limited warranty

  • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Controls

  • Optional motion sensor for additional energy savings.
  • Optional 10KV SPD.

Listings

  • Design Lights Consortium® (DLC 5.1) qualified.
  • IP65(UL listed for wet locations).
  • Rated for ambient operating temperature -40°F to 108°F (-40°C to 40°C).

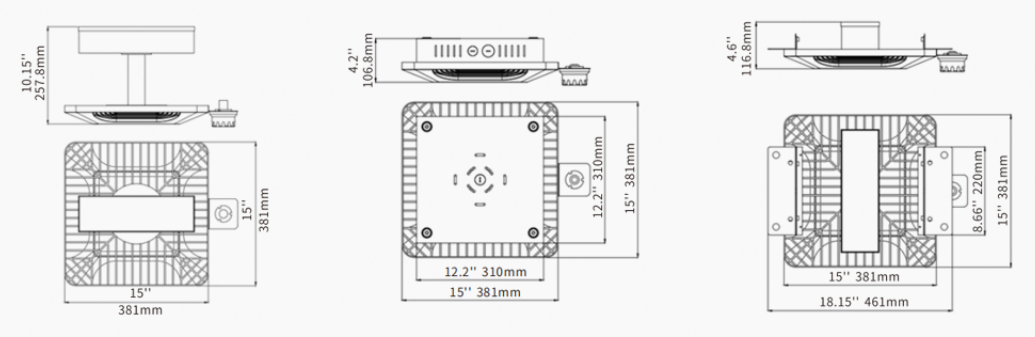

Dimension

This product is available in 3 sizes to meet different application scenarios.

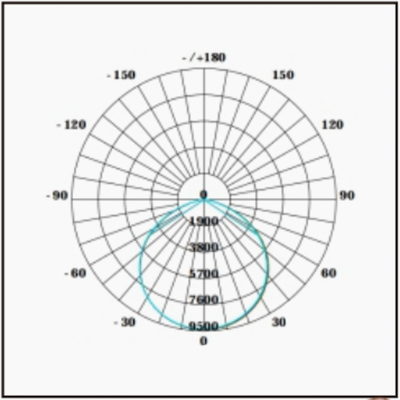

Photometricsion

Each point on the light distribution curve indicates the luminous intensity of the lamp in this direction, and the angle of the lamp can also be known.

Accessory

SPD

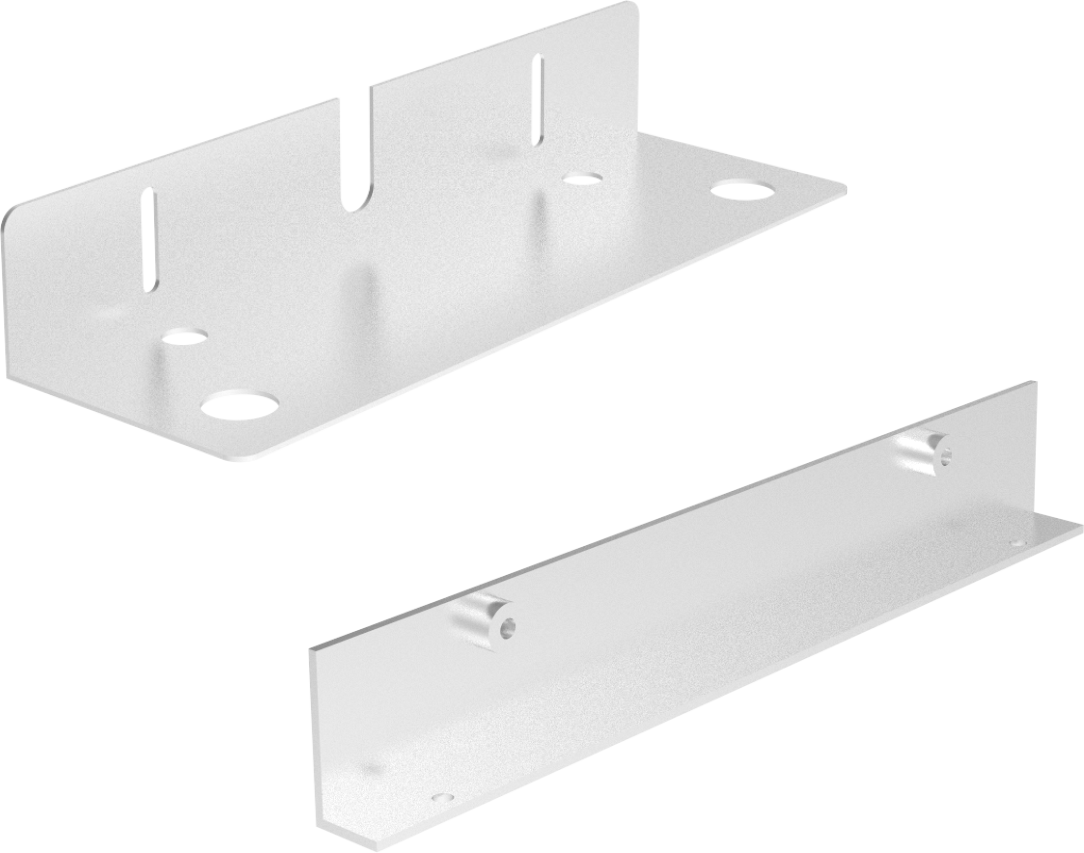

Mounting plates

Motion Sensor
