LED Linear High Bay(GEN 5) GCL-562

Characteristics

General Information

Compliance

UL certified

DLC PREMIUM

FCC

RoHS

Electrical Information

Electrical Class

Class I US

Nominal Voltage

120-347V 50-60Hz

Control protocol(s)

0-10V

Control option(s)

Motion Sensor

Optical Information

LED Color temperature(K)

4000

5000

CCT selectable (3500-4000-5000K)

Color redering index (CRI)

80

Performance

Luminaire output flux (lm)

18000-60000

Power consumption (W)

120Ws (60-80-120W)
225Ws (160-190-225W)
375Ws (225-300-375W)

Luminaire efficacy - up to (lm/W)

160

Housing and finish

Housing

Die-cast aluminum

Tightness level

Wet location

Key Features

Construction

  • Die-formed channel with baked-white enamel finish.
  • The exterior is protected by a rust-resistant powder coat finish that provides superior resistance to weathering and corrosion.
  • Textured architectural white powder coat finish.

Electrical

  •  Linear Ambient light distribution available.
  •  Light engines are available in standard 4000K/5000K and CCT Selectable(3000K-4000K-5000K) and CRI80 configurations.
  • 0-10V dimmable driver(std) .
  • THD: ≤20%, Power Factor: ≥90%.

Installation

  • Cable Mount.
  • Pendent installation with 3/4 inch conduit.

5-year limited warranty

  • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Controls

  • Optional Motion Sensor for additional energy savings.

Listings

  • Design Lights Consortium® (DLC 5.1) qualified.
  • Rated for ambient operating temperature -40°F to 108°F (-40°C to 40°C).

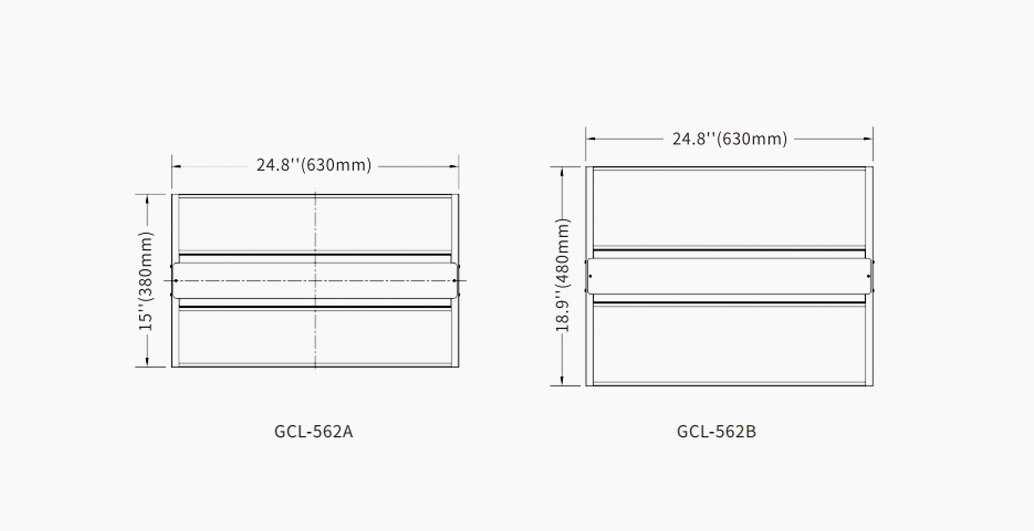

Dimension

This product is available in 2 sizes to meet different application scenarios.

Photometricsion

Each point on the light distribution curve indicates the luminous intensity of the lamp in this direction, and the angle of the lamp can also be known.

Accessory

Motion Sensor

Wire Guard

Show More

Download

Data Sheet-US

GCL-562-US
Download

IES Package

GCL-562
Download
