LED Street Light LLDL-904

Characteristics

General Information

Compliance

UL certified

DLC

RoHS

CE

ENEC

KEMA – KEUR

Saso

SEC

Electrical Information

Electrical Class

Class I US

Class I EU



Nominal Voltage

120-277V 50-60Hz

347-480V 50-60Hz (on option)

220-240V 50-60Hz

Surge protection (kV)

10

Control protocol(s)

1-10V

Control option(s)

NEMA socket

photocell

Motion sensor

Optical Information

LED Color temperature(K)

3000

4000

5000

6500

Color redering index (CRI)

70

Performance

Luminaire output flux (lm)

4550-42000

Power consumption (W)

35-300

Luminaire efficacy - up to (lm/W)

150

Housing and finish

Housing

Die-cast aluminum

Optic

PC

Protector

Glass cover

Tightness level

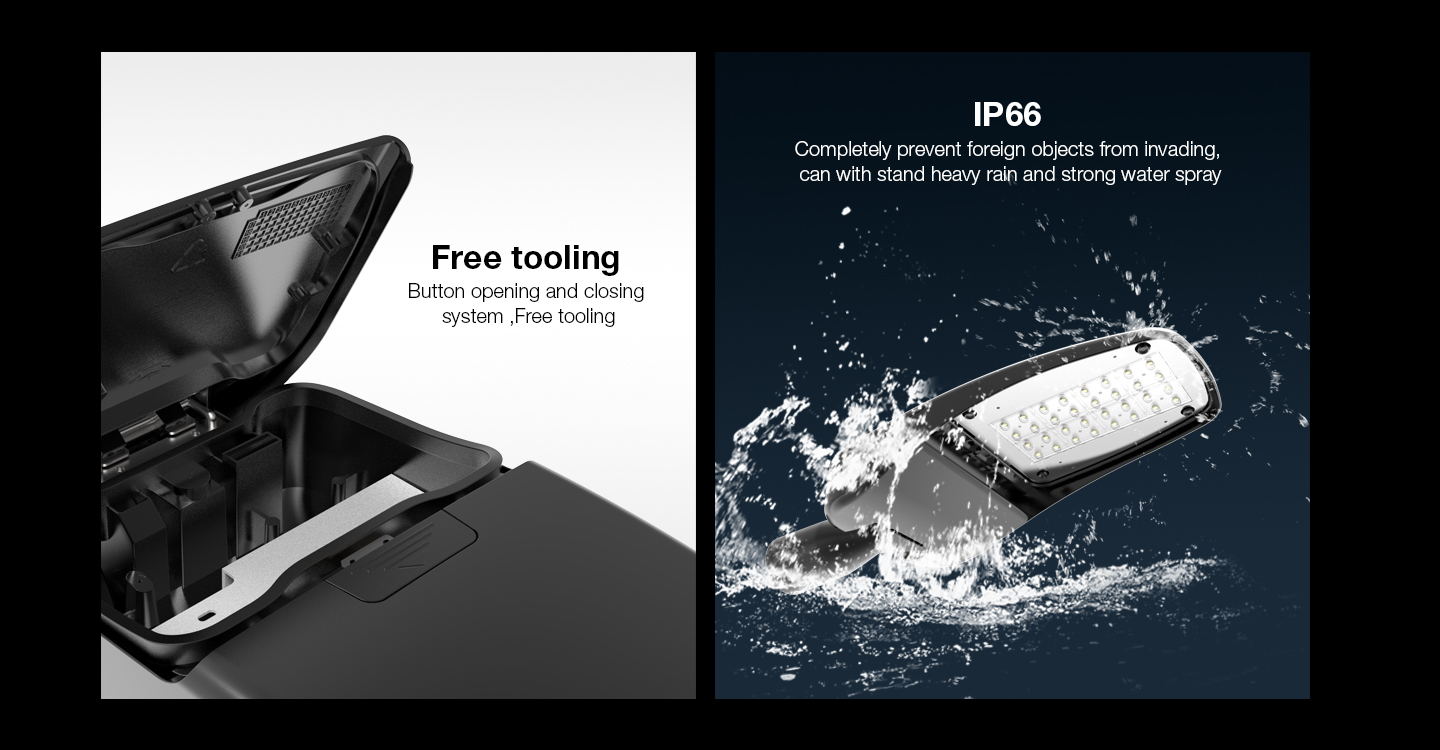

IP66

Impact resistance

IK08

Key Features

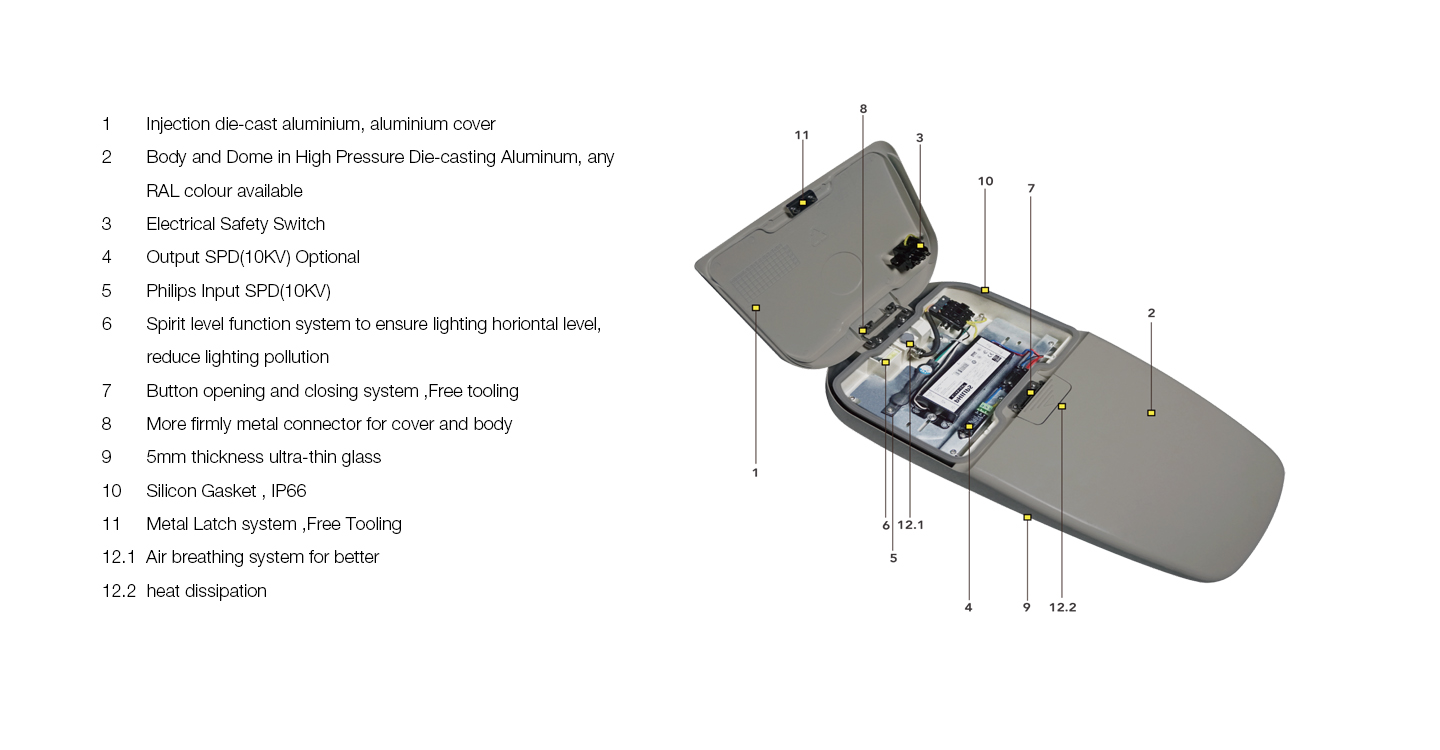

Construction

  • Rugged die-cast aluminum housing，PC lens and glass cover.
  • Housing has direct contact with the driver to help maintain low temperature and long lifespan.
  • Housing is completely sealed against moisture and environmental contaminants.
  • 3G vibration rated per ANSI C136.31.
  • The exterior is protected by a rust-resistant powder coat finish that provides superior resistance to weathering and corrosion.
  • Textured architectural bronze/black powder coat finish.

Electrical

  • Type II , III, IV, V light distribution available.
  • Universal 120-277V, 220-240V , optional 347-480V input voltage.
  • 1-10V dimmable driver.
  • THD: ≤20%, Power Factor: ≥90%.

Installation

  • General installation:Slip fittter,square/round poles arm mount.

5-year limited warranty

  • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Controls

  • 10KV SPD (std.).
  • Optional NEMA socket& photocell for additional energy savings .
  • Optional motion sensor.

Listings

  • Full series certification：CE, CB, ENEC, KEMA – KEUR, UL, SASO, DLC 5.1, RoHS.
  • IP66(UL listed for wet locations).
  • Rated for ambient operating temperature -40°F to 108°F (-40°C to 40°C).

Dimension

This product is available in 4 sizes to meet different application scenarios.

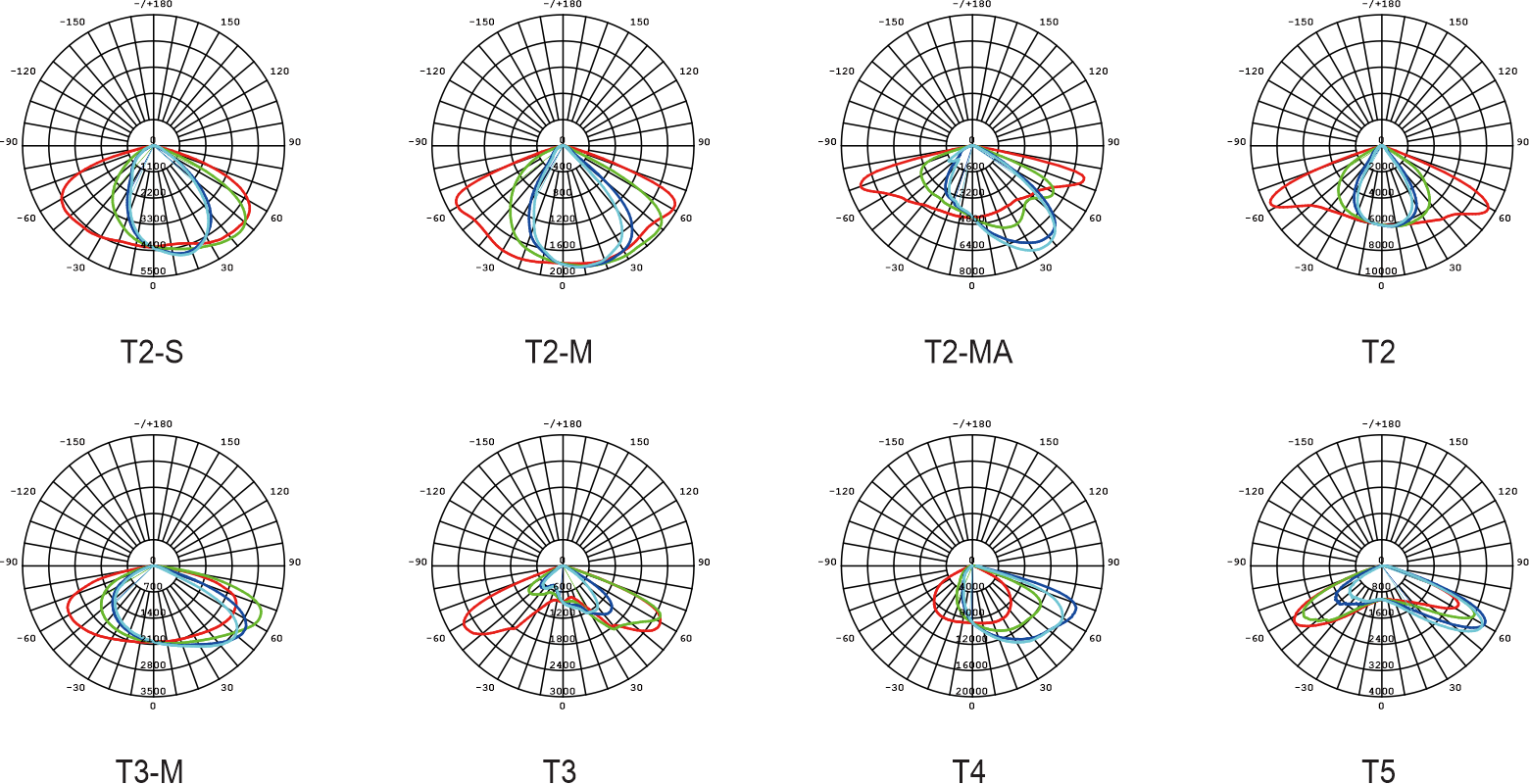

Photometricsion

Each point on the light distribution curve indicates the luminous intensity of the lamp in this direction, and the angle of the lamp can also be known.

Accessory

spigot Φ45mm

spigot Φ60mm

spigot Φ76mm

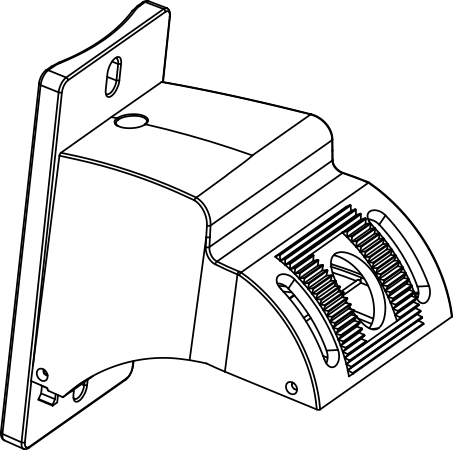

parking or wall mounting

Show More

Download

Data Sheet-US

LLDL-904-US
Download

Data Sheet-EU

LLDL-904-EU
Download

IES Package

LLDL-904
Download
